Determine the components of the support reactions at the fixed support A on the cantilevered beam. Solution: Show me the […] Determine the components of the support reactions8 Aug, 2018 in Mechanics: Statics tagged Engineering Mechanics: Statics / equilibrium
Determine the magnitude of the reactions on the beam at A and B. Neglect the thickness of the beam. Solution: […] Determine the magnitude of the reactions7 Aug, 2018 in Mechanics: Statics tagged Engineering Mechanics: Statics / magnitude

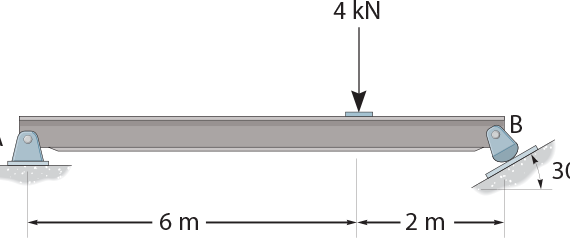

Determine the horizontal and vertical components of reaction at the pin A and the reaction of the rocker B on […] Determine the horizontal and vertical components2 Aug, 2018 in Mechanics: Statics tagged Engineering Mechanics: Statics
2 Determine the resultant couple moment of the two couples that act on the pipe assembly. The distance from A to […] Determine the resultant couple moment30 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment
A couple acts on each of the handles of the minidual valve. Determine the magnitude and coordinate direction angles of […] A couple acts on each of the handles30 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment

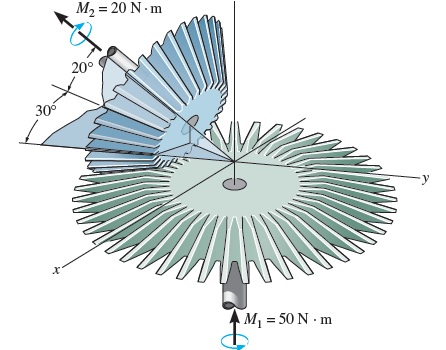

The meshed gears are subjected to the couple moments shown. Determine the magnitude of the resultant couple moment and specify […] The meshed gears are subjected29 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment
The gear reducer is subjected to the couple moments shown. Determine the resultant couple moment and specify its magnitude and […] The gear reducer is subjected to the couple moments29 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment
2 If the couple moment acting on the pipe has a magnitude of 400 N•m, determine the magnitude F of the […] If the couple moment acting on the pipe27 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment
Two couples act on the cantilever beam. If F = 6 kN, determine the resultant couple moment. Solution: Show me […] Two couples act on the cantilever beam25 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment
The cord passing over the two small pegs A and B of the square board is subjected to a tension […] The cord passing over the two small pegs25 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment
A device called a rolamite is used in various ways to replace slipping motion with rolling motion. If the belt, […] A device called a rolamite is used25 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment

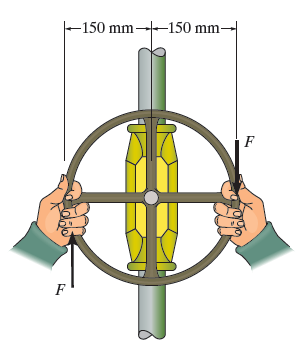

If the valve can be opened with a couple moment of 25 N•m, determine the required magnitude of each couple […] If the valve can be opened with a couple moment22 Aug, 2017 in Mechanics: Statics tagged Engineering Mechanics: Statics / Moment
