Determine the position x and the tension developed

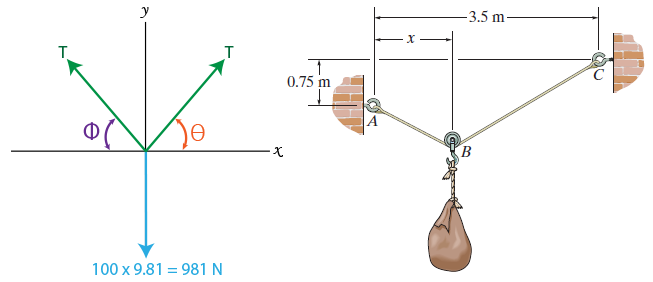

Cable ABC has a length of 5 m. Determine the position x and the tension developed in ABC required for equilibrium of the 100-kg sack. Neglect the size of the pulley at B.

Determine the position x and the tension developed

Image from: Hibbeler, R. C., S. C. Fan, Kai Beng. Yap, and Peter Schiavone. Statics: Mechanics for Engineers. Singapore: Pearson, 2013.

Solution:

Show me the final answers↓

Note that we will assume the pulley to be frictionless. This means the tension across the rope at any given point is going to be the same. Knowing this, we can draw a free body diagram like so:

Determine the position x and the tension developed

Let us write an equation of equilibrium for the x-axis forces.

\rightarrow ^+\sum \text{F}_\text{x}\,=\,0

T\text{cos}\theta\,-\,T\text{cos}\phi\,=\,0

(Factor out T and divide both sides of the equation by T)

\text{cos}\theta\,=\,\text{cos}\phi

Therefore,

\theta\,=\,\phi



Now, we will write an equation of equilibrium for the y-axis forces.

+\uparrow \sum \text{F}_\text{y}\,=\,0

2T\text{sin}\theta\,-\,981\,=\,0 (eq.1)

(remember, we established that \theta\,=\,\phi)



Now, let us draw a diagram of the dimensions given to us like so:

Determine the position x and the tension developed

Using trigonometry, we can write the following:

\dfrac{3.5\,-\,x}{\text{cos}\theta}\,+\,\dfrac{x}{\text{cos}\theta}\,=\,5

(remember, we know the total length of the rope is 5m)

Isolate for \theta:

\theta\,=\,\text{cos}^{-1}\left(\dfrac{3.5}{5}\right)

\theta\,=\,45.6^0



With the angle found, we can write the following using our diagram:

x\text{tan}\,(45.6^0)\,+\,0.75\,=\,(3.5\,-\,x)\text{tan}\,(45.6^0)

(solve for x)

x\,=\,1.38 m



Going back to eq.1 which was our equilibrium equation written for the y-axis forces, we can substitute the \theta value we found.

2T\text{sin}\theta\,-\,981\,=\,0

2T\text{sin}\,(45.6^0)\,=\,981

(solve for T)

T\,=\,686.5 N



Final Answers:

x = 1.38 m

T = 686.5 N



This question can be found in Engineering Mechanics: Statics (SI edition), 13th edition, chapter 3, question 3-35.
