The 30-kg pipe is supported at A


The 30-kg pipe is supported at A by a system of five cords. Determine the force in each cord for equilibrium.



The 30-kg pipe is supported at A

Image from: Hibbeler, R. C., S. C. Fan, Kai Beng. Yap, and Peter Schiavone. Statics: Mechanics for Engineers. Singapore: Pearson, 2013.

Solution:

Show me the final answers↓

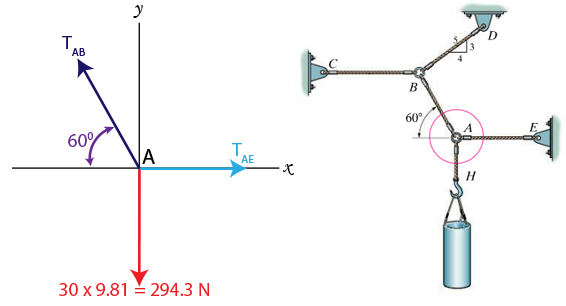

Let us draw a free body diagram focusing on ring A.

The 30-kg pipe is supported at A

Now, we will write an equation of equilibrium for y-axis forces.

+\uparrow \sum \text{F}_\text{y}\,=\,0

T_{AB}\text{sin}\,(60^0)\,-\,294.3\,=\,0 N

Solve for T_{AB}:

T_{AB}\,=\,339.8 N



Now, we will write an equation equilibrium for x-axis forces.

\rightarrow ^+\sum \text{F}_\text{x}\,=\,0

T_{AE}\,-\,339.8\text{cos}\,(60^0)\,=\,0

(Remember we just found T_{AB}\,=\,339.8 N)

Solve for T_{AE}:

T_{AE}\,=\,169.9 N

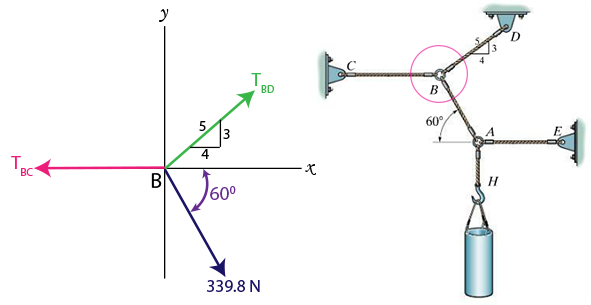

We can now focus on ring B and draw a free body diagram.

The 30-kg pipe is supported at A

Again, we will write an equation of equilibrium for y-axis forces.

+\uparrow \sum \text{F}_\text{y}\,=\,0

T_{BD}\dfrac{3}{5}\,-\,339.8\text{sin}\,(60^0)\,=\,0

Solve for T_{BD}:

T_{BD}\,=\,490.4 N



Now, we will write an equation of equilibrium for x-axis forces.

\rightarrow ^+\sum \text{F}_\text{x}\,=\,0

490.4\left(\dfrac{4}{5}\right)\,+\,339.8\text{cos}\,(60^0)\,-\,T_{BC}\,=\,0

(Remember, we found T_{BD}\,=\,490.4 N)

Solve for T_{BC}:

T_{BC}\,=\,562.2 N



Final Answers:

T_{AB}\,=\,339.8 N

T_{AE}\,=\,169.9 N

T_{BD}\,=\,490.4 N

T_{BC}\,=\,562.2 N



This question can be found in Engineering Mechanics: Statics (SI edition), 13th edition, chapter 3, question 3-39.
